How Best to Label Tapered Rounds
Mike Bieda • April 21, 2022

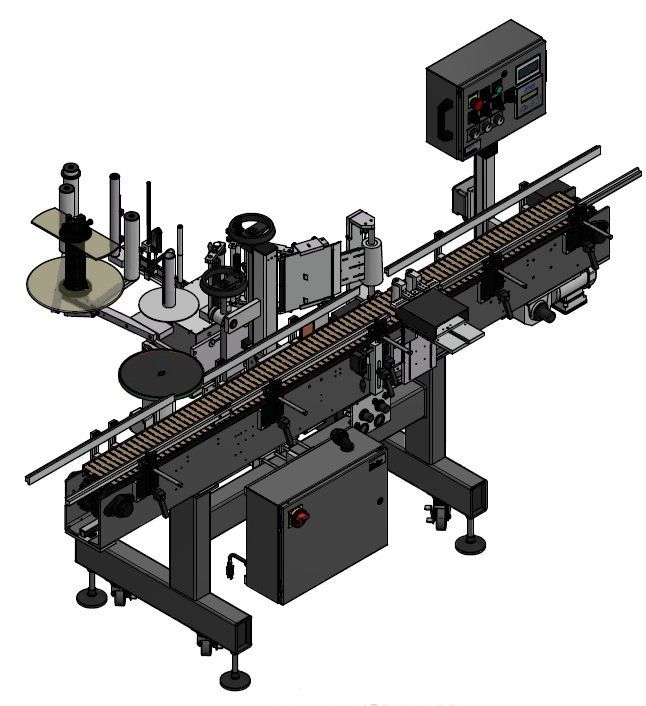

Labeling round products that are conical (tapered) in shape can be a challenge. The R321 with encapsulator and vacuum transfer grid facilitates the feeding of a crescent-shaped label onto a conical-shaped product, and rotates the product in place to properly apply labels.
The result: A system wrapping a label around conical shaped products at a required rate of 35 products per minute.
This 8 foot long R321 system also includes a stepper driven label applicator, product metering, detection, and automatic speed following. The system is built on a powder coated steel framework on leveling pads and casters.
This R322 system automatically applies pressure sensitive labels to a variety of paint cans from one gallon’s to 12 ounce spray cans. The round product system is equipped with a wide label SL2000 label applicator (web widths up to 8.125”/207mm). The system includes a product encapsulator to accurately and synchronously adhere synthetic labels.
The R310 can apply a single wrap label or can apply a front & back label to liquor or wine bottles. The average operator can label up to 6,000 units per day, accurately and effectively. The R310 includes a table top mount, stepper driven motor, and foot switch activation.
This automatic system is designed to apply labels to a variety of small diameter products. The operator places the products in a feed chute. The products are picked up by a carrousel wheel that rotates the products into position for labeling.
This automatic system automatically applies die cut pressure sensitive labels as a cap strap to a square liquor bottle. Upon detection by the photoelectric product sensor, the bottle is stopped and controlled by a pneumatic fixture and the label is tamped to the top and wiped down the neck. The wipe-down is achieved via a folding tamp head. Production speeds up to 40 products per minute.
Optimize honey bottle labeling with the L60 semi-automatic machine. Offering high precision and easy operation, it's ideal for honey packaging.
This CP2000 is designed for high volume, high production speeds for labeling rounds, round one gallons with handle orientation, and ovals, and all with a limited changeover time.
